Polycarbonate Roof Fasteners

ATLAS FASTENERS - Polycarbonate Roof Fasteners - Kwik-Shot™ METAL

Polycarbonate Roof Fasteners: A Reliable Solution for Roofing Fastening

Secure your plastic skylight with our trusty and durable Polycarbonate Roof Screws Fasteners. Kwik-Shot™ create an expansion hole in a one-shot process, fixing skylights easily onto steel substrates. Our polycarbonate roof screws can save 50% of labor time – create an expansion hole and fix sheets in one go.

Polycarbonate Roofing Fasteners

Kwik-Shot™ METAL - Fixing Polycarbonate Skylight to Steel

Product Code: A4-SDHXPS12060C4
Specification: #12-14 X 60mm
Corrosion Resistance: True Australian Standard Class 4 Coating (C4). SST 2000hrs + Kesternich 15 Cycles
Product Features:

1. Hex Washer Flange Head
2. Integrated Depth Stop Knurls
3. 11mm Expansion Hole Cutter
4. Thunder Shot Self-Drilling Point

Steel Penetration: Max 4.5mm thick
Adapter to use: Magnetic Hex Socket (5/16”)
Washer: Domed, Weatherseal, Anti-static EPDM Washer.
Domed Structure: Superior strength against high winds.
Two Concentric Sealing Rims: Keeps the 11mm expansion hole fully sealed.

Kwik-Shot™ polycarbonate fasteners save 50% of labor time – creates a perfectly round 11mm expansion hole, and fix sheets in one go. A fool proof design for both beginners and professionals.

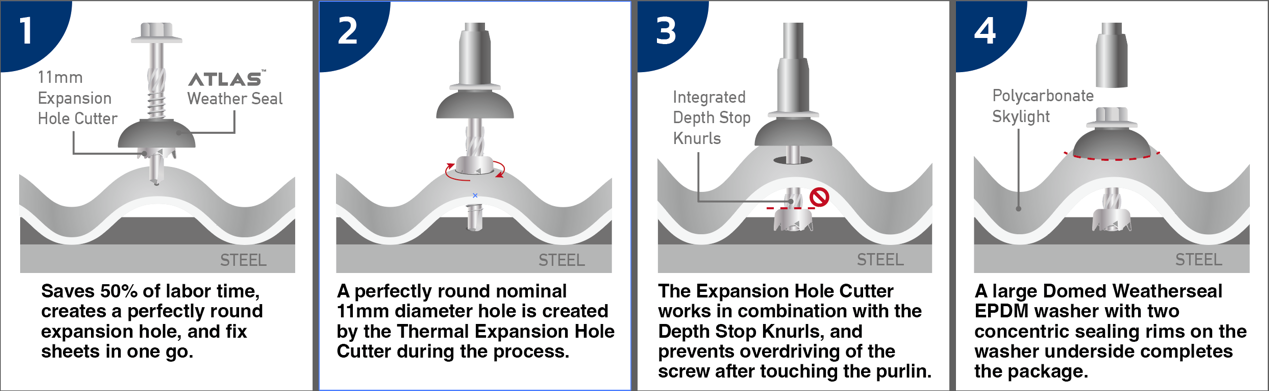

Installation Procedure:

1. Saves 50% of labor time, creates a perfectly round expansion hole, and fix sheets in one go.
2. A perfectly round nominal 11mm diameter hole is created by the Thermal Expansion Hole Cutter during the process.
3. The Expansion Hole Cutter works in combination with the Depth Stop Knurls, and prevents overdriving of the screw after touching the purlin.
4. A large Domed Weatherseal EPDM washer with two concentric sealing rims on the washer underside completes the package.
